Function

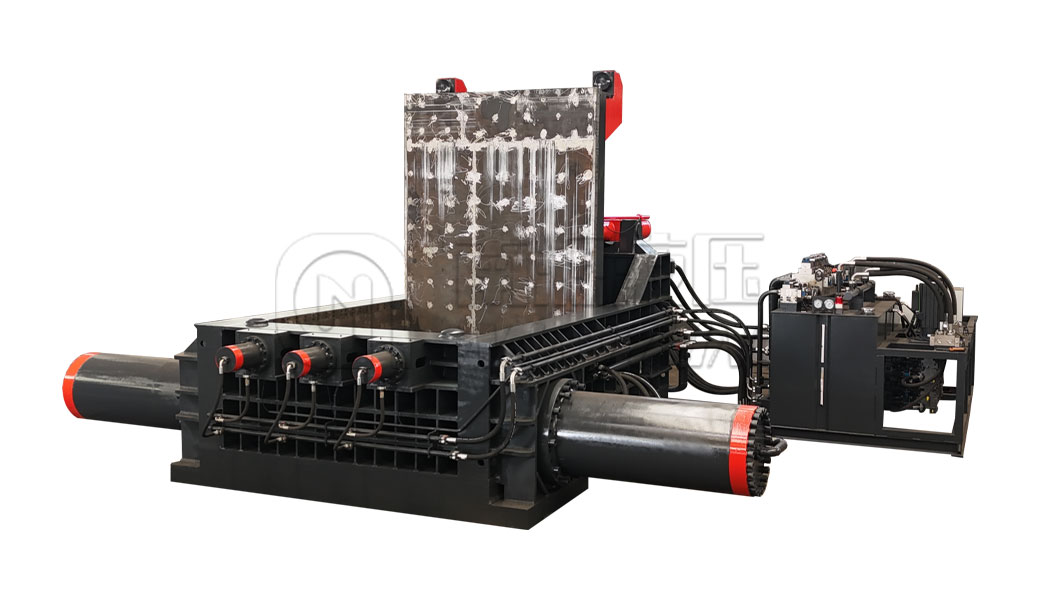

Used for the thickness of less than 6mm of all kinds of metal waste (scrap, shavings, scrap steel, scrap aluminum, scrap copper, waste stainless steel) extrusion into cuboid, octagon body, cylinder and other shapes of qualified charge. It is suitable for scrap steel processing and distribution center (base), scrap car dismantling and remanufacturing enterprises, steel and non-ferrous metal industry, etc.
Features
1. All models are driven by hydraulic pressure, manual operation or PLC automatic control can be selected.
2. The way to get out of the bag is to turn over the bag, push the bag on the side, push the bag forward, take the bag manually, etc.
3. It can be equipped with diesel engine as standby power supply.
Technical Specification
|
Model
|
Main Cyl.Force(ton)
|
Press Box Size(L×W×H/mm)
|
Bale Size(W×H/mm)
|
Power(kw)
|
|
Y81/F-125
|
125
|
1200×700×600
|
300×300
|
15
|
|
Y81/F-125
|
125
|
1400×800×300
|
300×300
|
22
|
|
Y81/F-125
|
125
|
1400×900×600
|
300 octagon
|
22
|
|
Y81/F-160A
|
160
|
1600×1000×800
|
400×400
|
22
|
|
Y81/F-160B
|
160
|
1600×1200×800
|
400×400
|
37
|
|
Y81/F-200A
|
200
|
1600×1200×800
|
400×400
|
37
|
|
Y81/F-200B
|
200
|
1800×1400×800
|
450×450
|
2×22
|
|
Y81/F-250
|
250
|
2000×1400×900
|
500×500
|
2×22
|
|
Y81/F-250
|
250
|
2500×2000×1000
|
500×500
|
2×30
|
|
Y81/F-250
|
250
|
2500×2000×1200
|
600×600
|
2×30
|
Technical Specification
|
Model
|
Main Cyl.Force(ton)
|
Press Box Size(L×W×H/mm)
|
Bale Size(W×H/mm)
|
Power(kw)
|
|
Y81/K-250
|
250
|
2500×2000×1000
|
500×500
|
2×30
|
|
Y81/K-315
|
315
|
2500×2000×1200
|
500×500/600×600
|
2×45
|
|
Y81/K-315
|
315
|
3500×3000×1300
|
700×700
|
2×45
|
|
Y81/K-400
|
400
|
2500×2000×1200
|
600×600
|
2×45
|
|
Y81/K-400B
|
400
|
3500×3000×1300
|
700×700
|
3×45
|
|
Y81/K-500
|
500
|
2500×2000×1200
|
600×600
|
2×45
|
|
Y81/K-500B
|
500
|
3500×3000×1300
|
700×700
|
3×45
|
|
Y81/K-630X
|
630
|
2500×2000×1200
|
600×600
|
3×45
|
|
Y81/K-630A
|
630
|
3000×2500×1200
|
600×600
|
3×45
|
|
Y81/K-630B
|
630
|
3500×3000×1300
|
700×700
|
3×45
|
|
Y81/K-800
|
800
|
3500×3000×1300
|
700×700
|
4×45
|
|
Y81/K-1000A
|
1000
|
3000×2500×1400
|
600×600
|
4×45
|
|
Y81/K-1000B
|
1000
|
3500×3000×1400
|
700×700
|
5×45
|
|
Y81/K-1300A
|
1300
|
3000×2500×1400
|
600×600
|
3×90
|
|
Y81/K-1300B
|
1300
|
3500×3000×1400
|
700×700
|
3×90
|
|
Y81/K-1500A
|
1500
|
3500×3000×1500
|
700×700
|
4×90
|
|
Y81/K-1500B
|
1500
|
4000×3000×1500
|
700×700
|
4×90
|
|
Y81/K-2000
|
2000
|
4000×3000×1600
|
700×700/800×800
|
5×90
|
Technical Specification
|
Model
|
Main Cyl.Force(ton)
|
Press Box Size(L×W×H/mm)
|
Bale Size(W×H/mm)
|
Power(kw)
|
|
Y81/Q-135B
|
135
|
1300×600×600
|
600×240
|
Front package block
|
|
Y81/Q-200
|
200
|
1400×700×600
|
700×280
|
Front package block
|
|
Y81/Q-315
|
315
|
1600×800×600
|
800×280
|
Front package block
|
Technical Specification
|
Model
|
Main Cyl.Force(ton)
|
Press Box Size(L×W×H/mm)
|
Bale Size(W×H/mm)
|
Power(kw)
|
|
Y81/F-315
|
315
|
2500×2000×1200
|
600×600
|
2×45
|
|
Y81/F-315
|
315
|
3000×2500×1200
|
600×600
|
2×45
|
|
Y81/F-315
|
315
|
3500×3000×1300
|
600×600/700×700
|
2×45
|
|
Y81/F-400
|
400
|
3500×3000×1300
|
700×700
|
3×45
|
|
Y81/F-400l
|
400
|
5000×2200×1300
|
500×500
|
3×45
|
|
Y81/F-500
|
500
|
3000×2500×1300
|
700×700
|
3×45
|
|
Y81/F-630
|
630
|
4000×3000×1300
|
700×700
|
3×45
|
